ECOLAB是全球水、卫生和感染预防解决方案及服务领域的供应商。

ECOLAB电导率变送器10240835介绍

紧凑型版本，传感器长度 L：60 mm

Compact version, sensor L: 60 mm

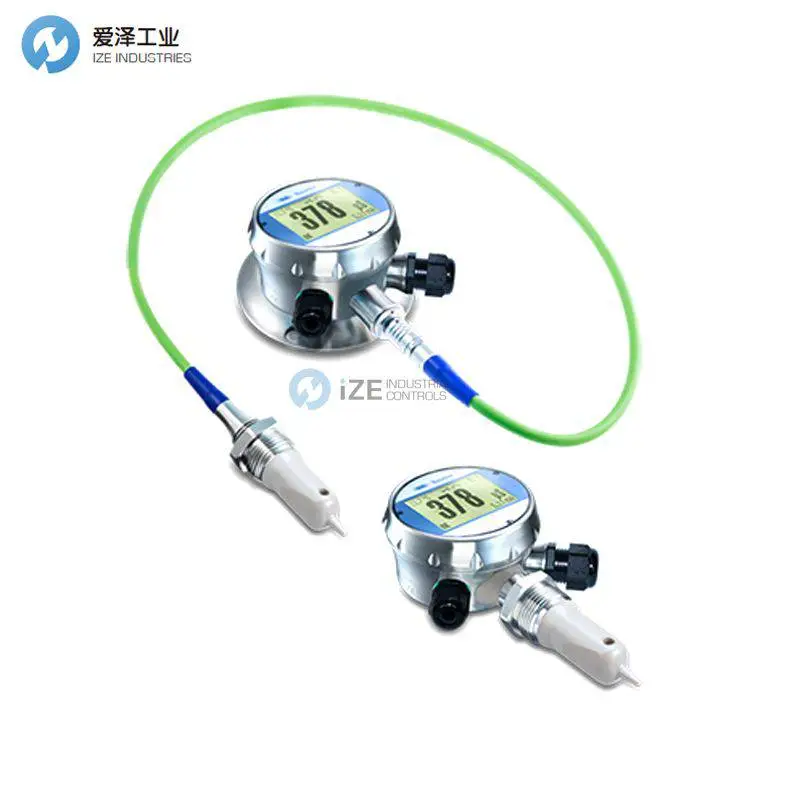

ECOLAB电导率变送器LMIT 10系列介绍

LMIT 10 电导率仪专为分析液体介质而设计。该设备可同时显示测得的电导率和计算出的化学浓度，其坚固耐用的卫生设计符合最高的工业标准。

两种不同的安装方式（集成式或远程测量单元）可实现灵活的安装，并适用于广泛的应用，例如：

CIP 清洗过程中的相分离

洗涤剂和消毒剂溶液的浓度监测

水质监测

液体产品质量控制

在线测量过程控制

食品污染监测

为了进行必要的温度补偿，测量探头中集成的温度传感器会持续测量温度和电导率。输入的电导率和温度数据会根据可调的温度补偿系数自动相互抵消。由此确定的补偿电导率值可以直接转换为浓度，并使用存储的各种化学品的浓度曲线进行显示。

电导率和温度或浓度和温度的显示值可以通过两个可配置的电流输出或可选的集成 IO-Link 接口传输到上级控制器。

The LMIT 10 conductivity meter was designed for analysing liquid media. The device can display both the measured conductivity and a calculated chemical concentration and meets the highest industrial standards thanks to its robust, hygienic design.

Two different mounting versions with integrated or remote measuring cell allow flexible installation and a wide range of applications, such as:

Phase separation during CIP applications

Concentration monitoring for detergent and disinfectant solutions

Monitoring of water quality

Quality control for liquid products

Process control by online measuring

Contamination monitoring of food

For the necessary temperature compensation, a temperature sensor integrated in the measuring probe permanently measures the temperature as well as the conductivity. The incoming data for conductivity and temperature are automatically offset against each other, taking into account adjustable temperature compensation factors. The compensated conductivity value determined in this way can then be converted directly into concentration and displayed using stored concentration curves for various chemicals.

The display values for conductivity and temperature or concentration and temperature can be transferred to a higher-level controller via two configurable current outputs or optionally via the integrated IO-Link interface.

ECOLAB电导率变送器其他常用型号：

ECOLAB 10241306

ECOLAB 10241304

ECOLAB 10241305

ECOLAB 10240835

ECOLAB 10240833

ECOLAB 10240834

ECOLAB sensor NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于ECOLAB传感器10240835的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for ECOLAB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

ECOLAB电导率变送器10240835产品介绍
