BUHELER成立于1969年，五十多年一直于气体分析和流体控制方面研发和销售。

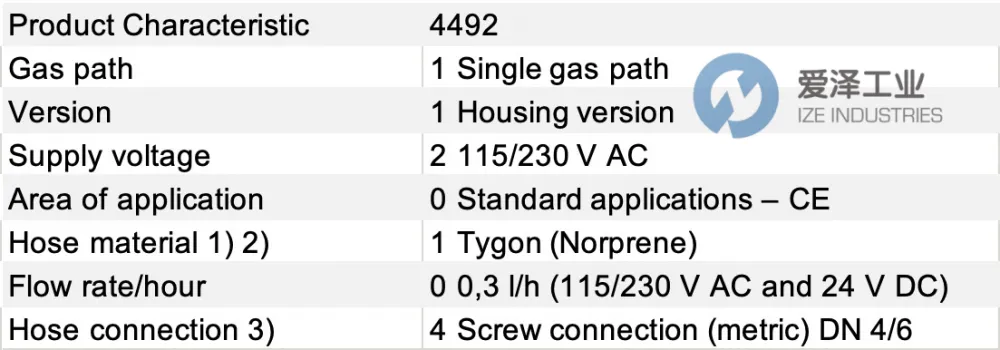

BUHLER计量泵44921120104技术参数

BUHLER计量泵介绍

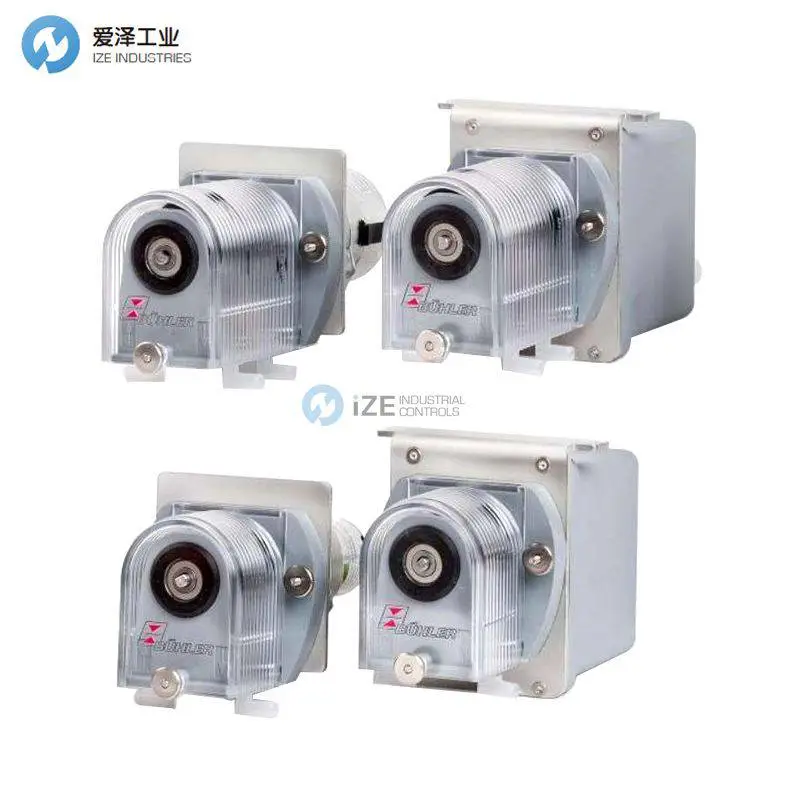

蠕动式冷凝液泵和计量泵 CPsingle、CPdouble

在气体调节过程中对气体进行调理时，会产生冷凝液。对潮湿样气进行冷却时，冷凝液总会积聚。一方面，当样气管路中出现热桥时，可能会意外产生冷凝液；另一方面，水分沉积对于保护分析仪中的测量池免受损坏和/或稳定测量结果又是必要的。

由于样气通常通过抽吸方式输送至分析系统，因此必须将冷凝液泵出，以便将其排除。

所谓蠕动泵特别适用于此类用途。蠕动泵可从系统上防止外部空气进入样气系统，并且根据所使用的软管材料，能够对通常具有强腐蚀性的冷凝液提供很高的耐受性。

CPsingle 和 CPdouble 泵系列正是针对这些严苛的运行条件而开发的。

特点

内置式和外壳式版本

可选 FM 认证

支持分体安装

多种流量可选

低流量计量泵

软管更换方便

提供多种软管材料，适用于严苛应用

115/230 V AC 或 24 V DC

用于通过 DNV 型式试验的气体调理装置

可用于满足 IMO MARPOL MEPC.259(68) 要求的系统

专为高振动环境设计

适用于美国和加拿大的泵型号：44921，用于非爆炸性区域

蠕动泵必须安装在需要使用工具才能打开的外壳内；该外壳还必须满足整体安装对外壳、布局、空间需求以及冷凝液分离方面的要求。

应选择符合泵预期使用要求的外壳，尤其应满足安装、间距和爬电距离方面的要求。外壳必须适用于 0℃ 至最低 52℃ 的工作温度。

所有线路必须在外壳内部完成接线。所使用的电缆和接线端子必须具有美国认证（US-listed），或在适用情况下具有 CSA 认证，并且必须适用于额定电压、额定电流以及 0℃ 至 52℃ 的工作温度范围。

必须防止水和污染物进入设备。

Peristaltic condensate and metering pumps CPsingle, CPdouble

Condensate accumulates when conditioning gas in gas conditioning. It always accumulates when cooling moist sample gas. On one hand this may occur inadvertently if thermal bridges occur in the sample gas lines. On the other hand the deposit of moisture is necessary to protect the measuring cells in the analyser from damage and/ or stabilise measurements.

Since the sample gas is often conveyed through the analysis system with suction, the condensate must be pumped off to remove it.

So-called peristaltic pumps are particularly suited for this purpose. They systemically protect the sample gas system from external air and based on the hose material used offer high resistance against the often times highly corrosive condensate.

The CPsingle and CPdouble pump series were developed specifically for these severe operating conditions.

Characteristics Built-in and housing version

FM approval optional

Separate installation possible

Various flow rates

Metering pumps with low flow rates

Easy to replace hoses

Various hose materials available for demanding applications

115/230 V AC or 24 V DC

Used in DNV type-tested conditioning unit

Can be used in a system to maintain the IMO MARPOL

MEPC.259(68) .

Special design for use in high-vibration environments

Pump models for the USA and Canada 4492***1*** in non-explosive areas

The peristaltic pumps must be installed inside a housing which requires a tool to open and meets the requirements of the overall installation with respect to the housing, layout, space requirement and condensate separation.

Select a housing which meets the requirements of the pump's intended use with respect to mounting, spacing and creepage

paths. The housing must be suitable for operating temperatures of 0 °C to min. 52 °C.

It must be fully wired inside the housing. The cables and terminals used must be US-listed or (if applicable) CSA certified. They must be designed for the nominal voltage, the nominal current and an operating temperature range of 0 °C to 52 °C.

Water and contaminants must be prevented from entering the unit.

BUHLER计量泵其他常用型号：

BUHLER 44921120104

BUHLER 44922120104

BUHLER 44921120101

BUHLER metering pump NEW + ORIGINAL+ ONE YEAR WARRANTY
