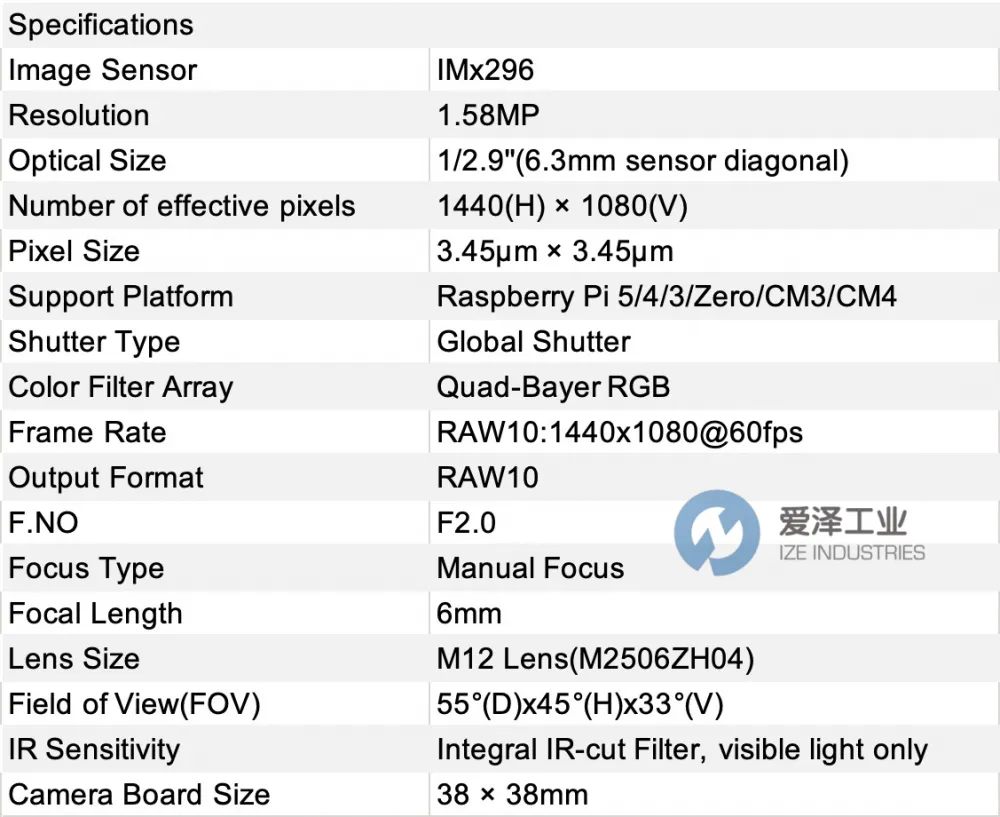

ARDUCAM摄像头模块UC⁻⁷17技术参数

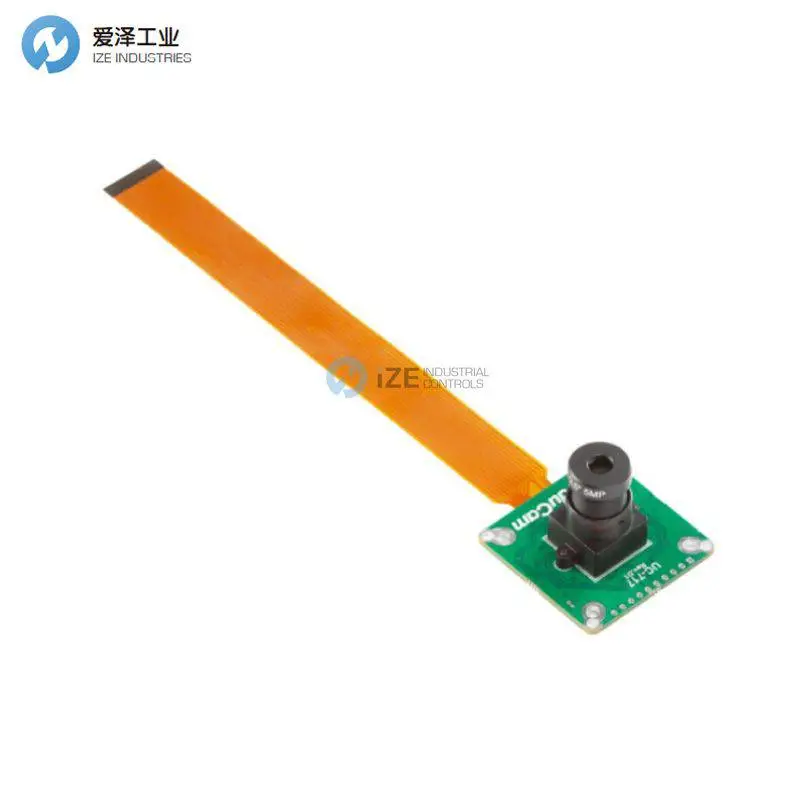

ARDUCAM摄像头UC⁻⁷17产品介绍

概述

本相机基于索尼（SONY）IMX296 彩色全局快门图像传感器。全局快门技术可减少或消除传统滚动快门传感器在拍摄过程中因运动造成的图像伪影。

相机配备 45°（水平视场，HFOV）M12 镜头。手动对焦 M12 相机适用于微距拍摄、弱光环境等场景。同时，该相机为 Raspberry Pi 原生设备，完全支持 libcamera 和 Picamera2 库。

Arducam 于为嵌入式相机用户打造多样且便捷的相机解决方案。除光学产品的生产与开发外，我们还提供嵌入式相机、评估套件、光学元件等完整解决方案。

应用

家庭安防系统

野生动物摄影

无人值守监控

工业视觉/机器视觉

自动化、人工智能项目等

特点

全局快门：基于索尼 IMX296 彩色全局快门图像传感器。该传感器为 CMOS 有源像素固态图像传感器，采用方形像素阵列，有效像素约 1.58 百万。

M12 镜头：配备 45°（HFOV）M12 镜头。集成 M12 镜头座，镜头座高度（Length Holder Height）为 13 mm。

手动对焦：手动对焦相机在某些特殊条件下更为适用，例如弱光和微距拍摄环境，手动对焦可获得完整的整体对比度，从而提高图像质量和对焦精度。

Raspberry Pi 原生：Raspberry Pi 原生支持，无需额外摄像头驱动。

广泛兼容：兼容 Raspberry Pi 3、4 A/B，配备 15-22 针和 22-22 针 FPC 弹性扁平电缆，支持在 Raspberry Pi Zero 上使用。

Overview

This camera is based on SONY IMX296 Color Global Shutter image sensor. Global shutter technology allows you to reduce or eliminate unwanted image artifacts, which occur with traditional rolling shutter image sensors as a result of motion during image capture.

The camera is equipped with a 45°(HFOV) M12 Lens. A manual focus M12 camera allows you to apply it in situations such as macro photographs, low light conditions, etc. Meanwhile, this camera is native to Raspberry Pi and fully supported by libcamera and Picamera2 library.

Arducam is committed to creating diverse and convenient camera solutions for ｅmbedded camera users. We are not only engaged in the production and development of optical products, but also strive to provide complete solutions for Embedded cameras, Evaluation kit, Optical components, etc.

Applications

Home Security System

Wildlife Photography

Unattended surveillance

Industrial Vision/Machine Vision

Automation, AI Project, etc.

Features

Global Shutter: Based on SONY IMX296 Color Global Shutter Image Sensor. The sensor is a CMOS active pixel type solid-state image sensor with a square pixel array and 1.58 M effective pixels.

M12 Lens: Armed with a 45° (HFOV) M12 Lens. Integrated with a M12 Lens Mount, of which Length Holder Height is 13mm.

Manual Focus: Manual Focus cameras are always more suitable in some special conditions. For example, in low-light and macro photography environments, manual focus can obtain a complete overall contrast of pictures, thereby improving image quality and focus accuracy.

Raspberry Pi Native: Native to Raspberry Pi. No additional camera driver is needed.

Wide Compatibility: Compatible with Raspberry Pi 3, 4 A/B, equipped with 15-22pin and 22-22pin FPC flexible cables. Support used on Raspberry Pi Zero.
