VAT总部位于瑞士，产品范围包括真空阀、进气阀、多阀模块、运动部件和边缘焊接金属波纹管。

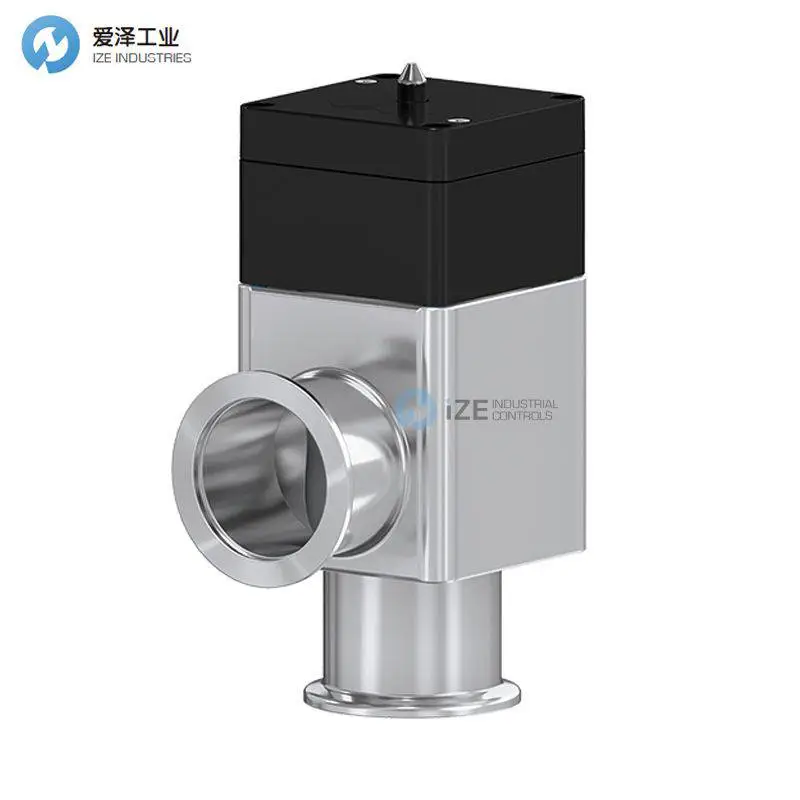

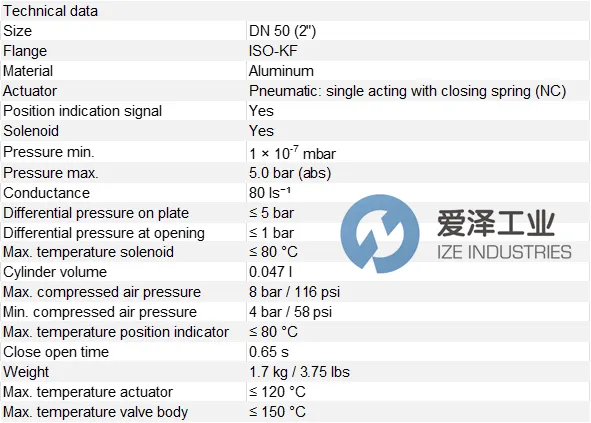

VAT角阀24434-KA41技术参数

VAT角阀24.4系列介绍

角阀的关键性能指标是可靠性和可变性。24.4系列角阀兼具这两点。该系列的设计旨在满足高流量甚至轻微污染气体的输送需求，可制造大尺寸产品。目前已生产最大口径为DN 800毫米（32英寸）的产品。

24.4系列产品在各种严苛的应用环境中经过测试，在各种工艺条件下均展现出可靠性。凭借其在驱动方式、法兰连接、本体材料或密封方面的多种设计选项，几乎可以满足所有需求。

24.4 型真空泵是真空系统抽气和排气的理想之选。它能承受高压差，其模块化设计使其能够适应各种工艺和操作要求。24.4 型真空泵的设计旨在实现的可靠性和超长的使用寿命。

The key perｆormance indicators for angle valves are reliability and variability. The 24.4 Angle Valve series combines both. The series has been designed to allow the construction of large sizes for high and even slightly contaminated gas volume flows. Sizes of up to DN 800 mm (32") have been produced so far.

Tested in thousands of demanding applications under various process conditions the 24.4 series has proven its outstanding reliability. With its various design options in actuation, flanges connection, body material or sealing, nearly every requirement can be met.

The 24.4 is ideal for the pumping and venting of vacuum systems. It resists high differential pressure and its modular design means it can be adjusted to various process and operation requirements. The 24.4 is designed for outstanding reliability and a long lifetime.

VAT角阀24.4系列其他常用型号：

VAT 24434-KA41-BD11

VAT 24434-KA01

VAT 24434-KA11

VAT 24434-KA12

VAT 24434-KA21

VAT 24434-KA22

VAT 24434-KA31

VAT 24434-KA32

VAT 24434-KA41

VAT 24434-KA42

VAT 24434-KE01

VAT 24434-KE11

VAT 24434-KE12

VAT 24434-KE21

VAT Angle valve NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、于一体，代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于VAT角阀24434-KA41-BD11的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for VAT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

VAT角阀24.4系列24434-KA41-BD11技术参数及介绍
