PARKER成立于1917年，作为运动与控制技术领域的供应商，在对世界产生积极影响的应用领域中发挥着关键作用。PARKER是一家能够给客户提供液压、气动、密封、机电一体化和计算机传动控制解决方案的制造商。

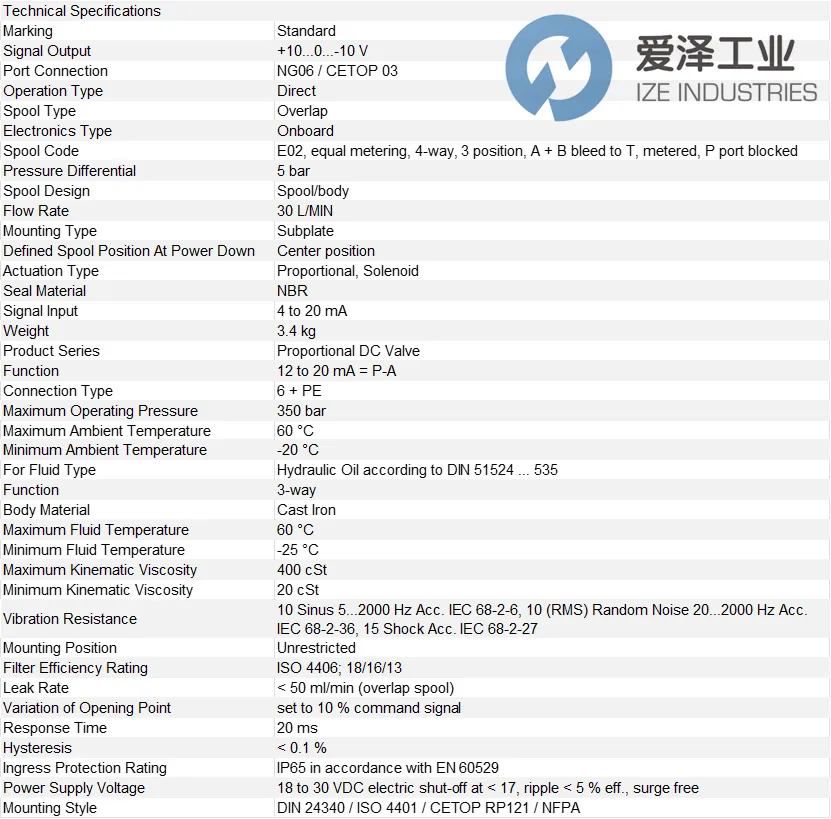

PARKER阀D1FCE02KC9NS03技术参数

PARKER阀D1FC系列介绍

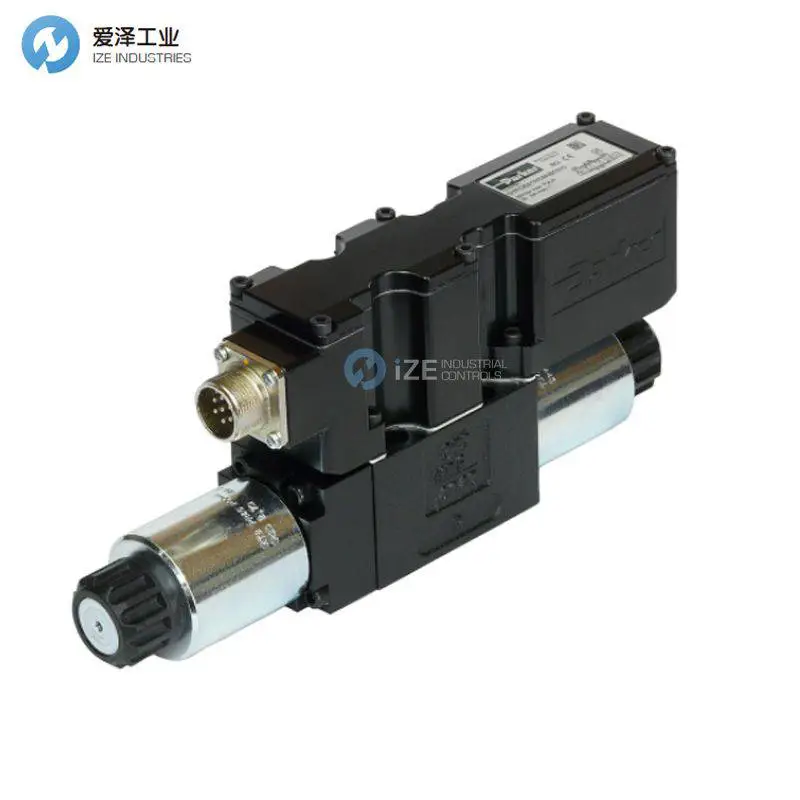

新型直动式比例直流阀D1FC (NG06) 系列采用数字式电子元件和位置反馈功能，兼具高动态性能和高流量。

D1FC提供重叠式阀芯（适用于开环应用）和零重叠式阀芯（适用于闭环控制）。

LVDT完全集成在阀体内部，无需外露电缆连接，因此不会发生意外断开。

数字式电子元件位于坚固的金属外壳内，可在恶劣环境下使用。额定值已在工厂设定。用于连接RS232串行接口的参数化电缆可作为附件提供。

特性

• 渐进式流量特性，可实现灵敏调节

• 低滞后

• 高动态性能

• 高流量

• 结构紧凑

• 零重叠式阀芯断电后阀芯位置可保持稳定

• 可选配压力补偿元件，用于阀门电子元件，以适应温度波动较大的环境

The new direct operated proportional DC valve series D1FC (NG06) with digital onboard electronics and position feedback provides high dynamics combined with high flow.

The D1FC is available with overlap spools for open loop applications as well as zero lap spools for closed loop control.

The LVDT is completely integrated into the housing and it does not require an exposed cable connection. Thus an unintended disconnection is impossible.

The digital onboard electronics is situated in a robust ｍmbedl housing, which allows the usage under rough environmental conditions. The nominal values are factory set. The parametrizing cable to connect to a serial RS232 interface is available as accessory.

Features

• Progressive flow characteristics for sensitive adjustment

• Low hysteresis

• High dynamics

• High flow capacity

• Compact dimensions

• Defined spool positioning at power-down for zero lap spools

• Optional pressure compensation element for valve electronics available for environments with strong temperature fluctuations.

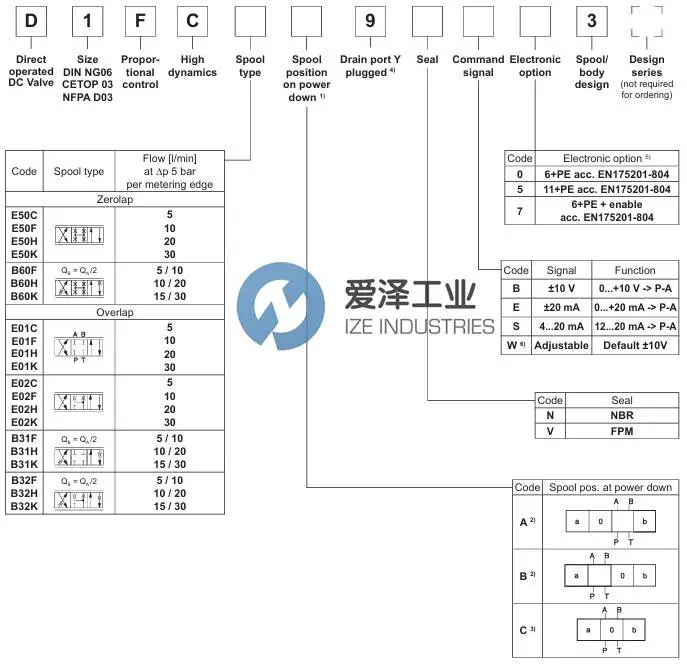

PARKER阀D1FC系列选型

PARKER阀D1FC系列其他常用型号：

PARKER D1FCE02KC9NS03

PARKER D1FCB31KC9NS03

PARKER D1FCB31KC9NS73

PARKER D1FCB32KC9VB73

PARKER D1FCE01FC9VE03

PARKER D1FCE02HC9NE73

PARKER D1FCE02CC9VB03

PARKER D1FCE02FC9NS03

PARKER D1FCE02FC9VB03

PARKER D1FCE50CA9NB03

PARKER D1FCB32FC9NB73

PARKER D1FCB32HC9NB03

PARKER D1FCB32HC9NB73

PARKER D1FCB32HC9NS73

PARKER D1FCE01FC9VB03

PARKER D1FCE01HC9NB03

PARKER D1FCE01HC9NB73

PARKER D1FCE01HC9NS03

PARKER D1FCE01HC9VB03

PARKER valve NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于PARKER阀D1FCE02KC9NS03的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

PARKER阀D1FC系列D1FCE02KC9NS03技术参数及介绍
