美国GGB探针Model 40M (ultra low loss - dc to 40 GHz)

点击次数：647

价格：￥电议

更新日期：2026/9/9 16:27:49

生产地：中国大陆

产品型号：

简单介绍：Durable DC to 40 GHz
Insertion loss less than 0.4db typical, 0.5db max
Return loss greater than 20db
Measurement repeatability -52db
Individually spring loaded contacts
Variet

商家名片

向**

联系我时，请说明是阿仪网看到的，谢谢!

电话: 18******958
手机: 18******958
微信:
交换名片后展示联系方式 → →

相关标签：Model,40M,美国GGB40A射频探针,高频探针

详细内容

产品特点

High Performance Microwave Probes

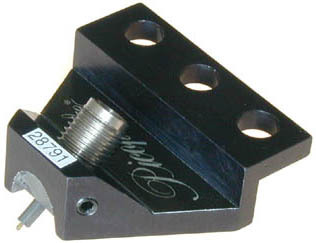

Model 40M Low Loss Picoprobe

Features of 40M-GSG-xxx-PLL

Durable DC to 40 GHz

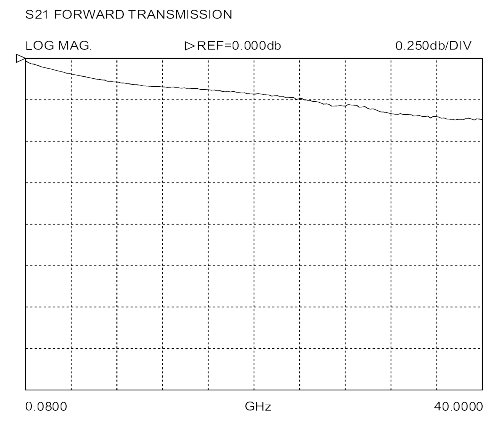

Insertion loss less than 0.4db typical, 0.5db max
Return loss greater than 20db
Measurement repeatability -52db
Individually spring loaded contacts
Variety of Footprints
Patented coaxial design

undefined

产品特点

We have shaved another .35 db insertion loss off of our industry standard MODEL 40A PICOPROBE®. This probe is recommended for certain types of load pull ａnd noise parameter measurements when even our standard, super low, 0.75 db insertion loss (typical at 40 GHz) is too high. We also offer low loss probes in DC to 50GHz ａnd DC to 67GHz.
