ROTECH于1990年成立，主营产品有气动执行器和工业阀门限位开关盒及相关配件。

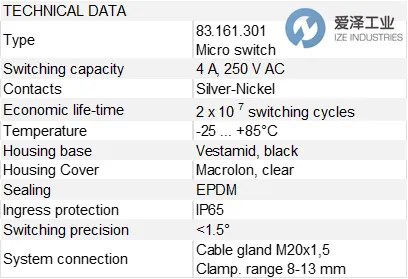

ROTECH限位开关盒TCR3MVAZ技术参数

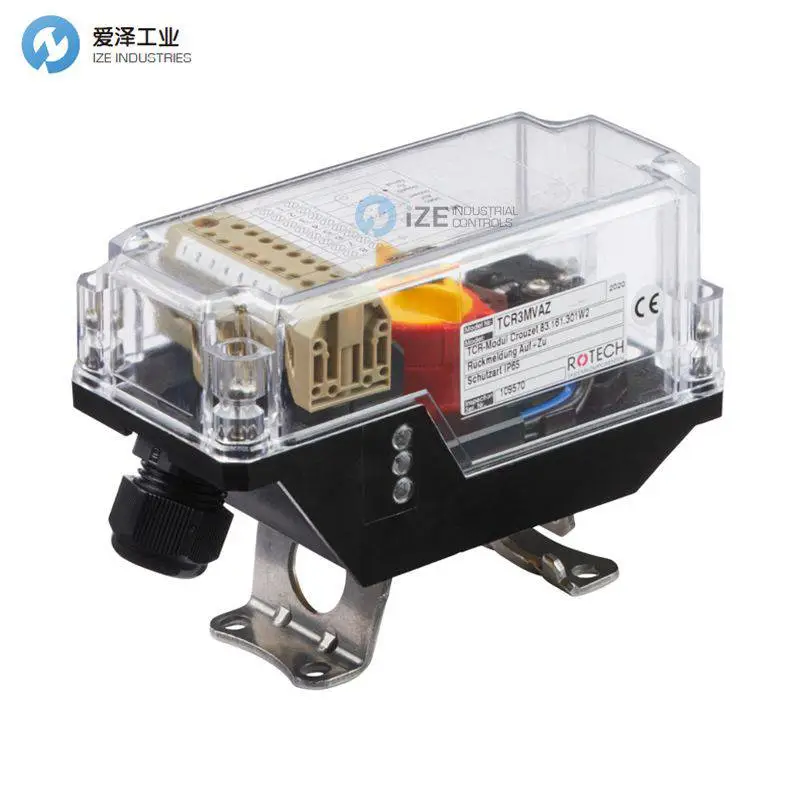

ROTECH限位开关盒TCR系列介绍

这款通用解决方案优势众多。其独特的壳体形状和高度偏移设计，有效保护限位开关的连接免受机械损伤。TCR壳体可兼容所有常见的限位开关类型和设计。内部连接便捷，易于安装和维护。LED状态指示灯、可选的3D视觉指示以及可连接两个电磁阀，进一步提升了这款灵活解决方案的实用性。尽管设计紧凑，但仍可容纳多达四个微动开关或槽式传感器。灵活的设计也使得客户定制化方案的实现变得轻松便捷。

This universal solution offers numerous advantages. Its unique housing shape and height offset design effectively protect the limit switch connections from mechanical damage. The TCR housing is compatible with all common limit switch types and designs. Internal connections are extremely convenient, facilitating installation and maintenance. LED status indicators, optional 3D vision indication, and the ability to connect up to two solenoid valves further enhance the practicality of this flexible solution. Despite its compact design, it can still accommodate up to four microswitches or slot sensors. The flexible design also makes it easy to implement customized solutions for customers.

ROTECH限位开关盒TCR系列其他常用型号：

ROTECH TCR3MVAZ

ROTECH TCR3MVAAZZ

ROTECH TCR3MVSAZ

ROTECH TCR3MVAZK

ROTECH TCR3AAZ0

ROTECH TCR1VVAZ

ROTECH limit switch box NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于ROTECH限位开关盒TCR3MVAZ的疑问，请随时致电我们，爱泽工业（021-31006702）。我们将尽解决您的问题。

If you have any question for ROTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

ROTECH限位开关盒TCR系列TCR3MVAZ技术参数及介绍
