KUHNKE公司目前生产一系列气动定时器、计数器、指示器以及呼吸设备组件，并经销气动产品以及阀门和气缸。

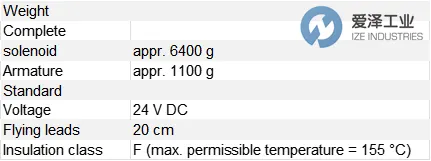

KUHNKE电磁阀RM100系列技术参数

KUHNKE电磁阀RM系列介绍

封装式电磁阀适用于高功率应用。其线圈受到保护，能够适应恶劣或暴露的环境，而其他类型的电磁阀在恶劣或暴露的环境下则容易老化，最终导致失效。

RM20、RM26 和 RM32 型电磁阀均配有双螺纹轴，通电后可沿一个方向提供推力或拉力。断电后，内部弹簧会将轴复位。该轴不可拆卸。

RM040 至 RM100 型号的电磁阀可选配双轴（提供推力或拉力）或单轴（仅提供推力）。电磁阀轴可从壳体中完全拆卸，以便进行检查或辅助安装。

需要一种机械解决方案来使轴复位，例如外部安装的弹簧、重力或自动化过程的一部分，才能使柱塞回到初始位置。

RM系列电磁阀采用前端安装方式。RM20和RM26电磁阀前端带有螺纹，而RM32、RM040至RM100电磁阀在两端均设有螺纹孔，用于将设备固定到表面上。

标准电压为 24V 直流，100% ED 额定值，带飞线或插头连接；其他电压或替代占空比可根据要求提供，以增加力。

Encapsulated solenoids are useful for high-power applications. The coil is protected and suited to arduous or exposed conditions where other solenoid designs would otherwise deteriorate, ultimately leading to failure.

RM20, RM26 and RM32 solenoids come with a double-threaded shaft providing a push or pull force in one direction when energised. An internal spring returns the shaft to its resting position when de-energised. The shaft is not removable.

RM040 to RM100 solenoids come with either a double shaft offering a push force, a pull force, or a single shaft for push-only applications. The solenoid shaft can be removed entirely from the casing for inspection or to assist in mounting the device.

A mechanical solution to return the shaft, for example, an externally mounted spring, gravity, or part of the automated process, is required to return the plunger to a home position.

RM series solenoids are nose-mounted. RM20 and RM26 solenoids come with a threaded nose, and RM32, RM040, to RM100 solenoids are provided with threaded holes at either end of the solenoid to secure the device to a surface.

Standard voltages are 24V DC, 100% ED rated with flying leads or a plug connection; other voltages or alternative duty cycles for increased force are available upon request.

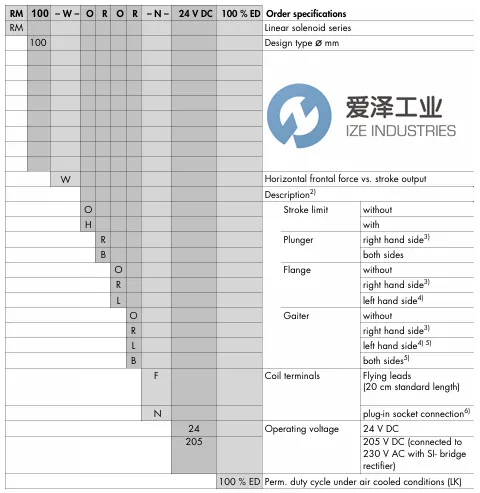

KUHNKE电磁阀RM100系列选型

KUHNKE电磁阀RM系列其他常用型号：

KUHNKE RM100W-ORRR-N* 48VDC 100%ED

KUHNKE RM 20-F-24VDC 100% ED

KUHNKE RM060W-OBOO-F* - - 24VDC 100%ED

KUHNKE RM 20-RF-24VDC 100% ED

KUHNKE RM 32-RF-24VDC 100% ED

KUHNKE RM 26-RF-24VDC 100% ED

KUHNKE RM 50- -F* - - 24VDC 100%ED

KUHNKE RM 40 - -F* - - 24VDC 100%ED

KUHNKE RM 32 - R -F* - - 24VDC 100%ED

KUHNKE RM070W-OROO-N 205VDC 5%ED

KUHNKE solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于KUHNKE电磁阀RM100W-ORRR-N* 48VDC 100%ED的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for KUHNKE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

KUHNKE电磁阀RM系列RM100W-ORRR-N* 48VDC 100%ED技术参数及介绍
