HB PRODUCTS从事工业和商业制冷和热泵系统传感器的开发和生产。

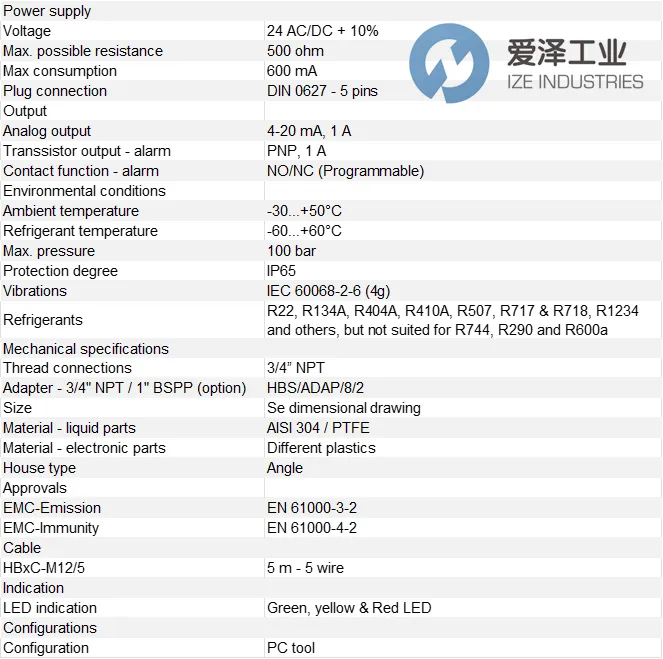

HB PRODUCTS液位传感器HBLT-W3- WIRE系列技术参数

HB PRODUCTS液位传感器HBLT-W3- WIRE系列介绍

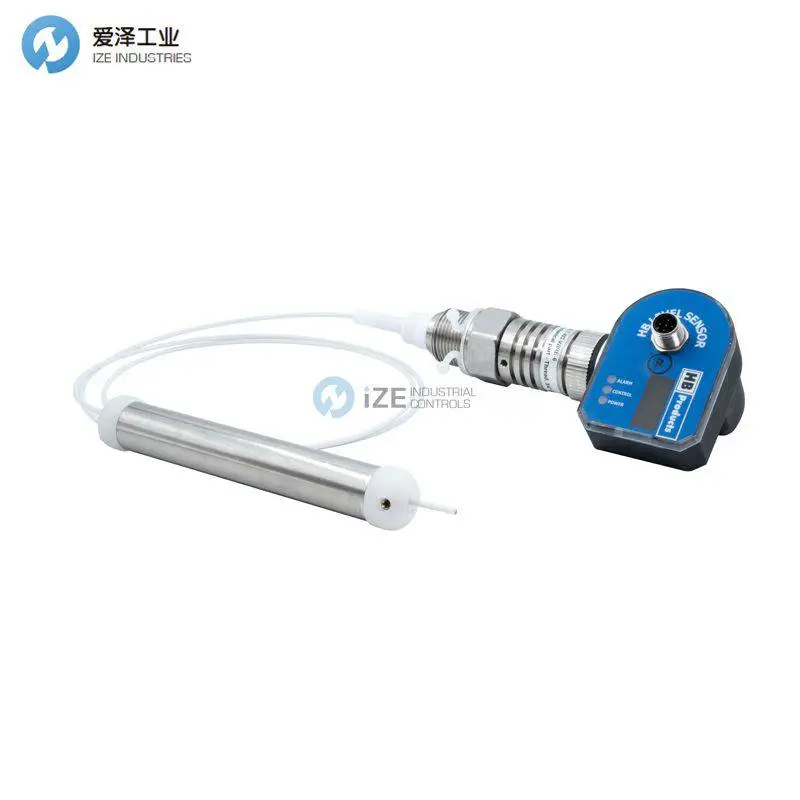

HBLT-W3-Wire 和 HBSLT-W3-Wire 是创新型电容式线式液位传感器，专为工业制冷系统中的精确液位测量而设计。它们采用 1.5 毫米绝缘不锈钢丝制成，可承受高压和低温，提供可靠耐用的解决方案。

产品特性

• 液体温度范围：可在 -60°C 至 60°C（⁻⁷6°F 至 140°F）的温度范围内运行。

• 耐压性：额定压力高达 100 bar (1450 psi)。

• 电源：该传感器采用 24V DC电源供电。

• 长度可调：传感器线长度可在 250 毫米至 6000 毫米之间调节，可灵活应用于各种场景。

• LED指示灯：提供清晰的电源和报警状态视觉指示。

• 分体式设计：简化了安装和诊断；只需两颗螺丝即可拆卸电子元件。

• 配置简便：使用 HB Tool 软件通过 PC 进行配置。

The HBLT-W3-Wire and HBSLT-W3-Wire are innovative capacitive Wire Sensors designed for accurate liquid level measurement in industrial refrigeration systems. Built with a 1,5 mm insulated stainless steel wire, they can withstand high pressure and low temperatures, providing a reliable and durable solution.

Product features

• Liquid temperature range: Operate across a temperature range of -60°C to 60°C (⁻⁷6°F to 140°F).

• Pressure tolerance: Rated for pressures up to 100 bar (1450 psi).

• Power supply: The sensor operates on a 24V DC power supply.

• Flexible length: The sensor wire can be adjusted from 250 mm to 6000 mm, providing flexibility for various applications

• LED indicators: Provides clear visual indicators for power supply and alarm status.

• Split design: Simplifies installation and diagnostics; electronic parts can be removed with two screws.

• Easy configuration: Configuration with a PC using HB Tool software.

HB PRODUCTS液位传感器HBLT-W3-WIRE-2介绍

长度：250-4000毫米

螺纹类型：3/4" NPT

Length: 250-4000 mm

Thread type: 3/4" NPT

HB PRODUCTS液位传感器其他常用型号：

HB PRODUCTS HBLT-W3-WIRE-2

HB PRODUCTS HBLT-W3-WIRE-6

HB PRODUCTS HBLT-W3-WIRE-6-2

HB PRODUCTS HBLT-W3-WIRE-6-6

HB PRODUCTS HBSLT-W3-WIRE/C-2

HB PRODUCTS HBSLT-W3-WIRE/C-6

HB PRODUCTS HBSLT-W3-WIRE/C-6-2

HB PRODUCTS HBSLT-W3-WIRE/C-6-6

HB PRODUCTS HBSLT-W3-WIRE/S-2

HB PRODUCTS HBSLT-W3-WIRE/S-6

HB PRODUCTS HBSLT-W3-WIRE/S-6-2

HB PRODUCTS HBSLT-W3-WIRE/S-6-6

HB PRODUCTS HBSLT-W3-WIRE/S-EL

HB PRODUCTS HBSLT-W3-WIRE/PWM-2

HB PRODUCTS HBSLT-W3-WIRE/PWM-6

HB PRODUCTS HBSLT-W3-WIRE/P-6-2

HB PRODUCTS HBSLT-W3-WIRE/P-6-6
