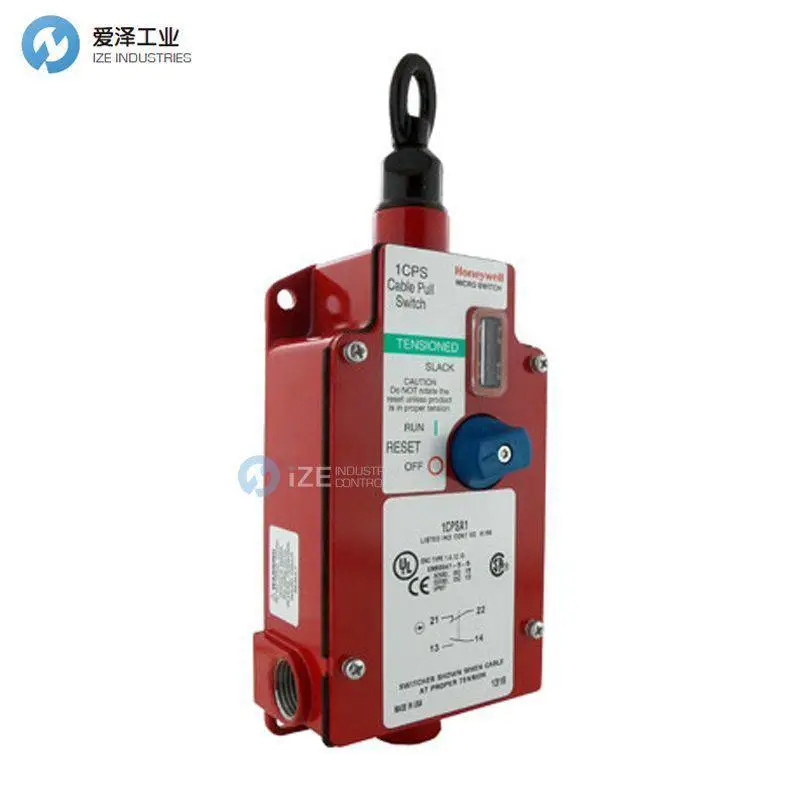

HONEYWELL拉绳开关1CPSC2A技术参数

开关类型：1CPS 系列 单头 拉绳安全开关

导管：C 20 mm

基本开关代号：

2

2常开/2常闭 直动型

开关1：1常开/1常闭

开关2：1常开/1常闭

指示灯/信号灯代号：A 24 Vdc LED

Switch Type：1CPS Series Single-Head Cable-Pull Safety Switch

Conduit：C 20 mm

Basic Switch Code：

2

2NO/2NC direct acting

Switch 1: 1NO/1NC

Switch 2: 1NO/1NC

Indicator-Pilot Light Code：A 24 Vdc LED

HONEYWELL拉绳开关CPS系列介绍

描述：

MICRO SWITCH CPS 系列拉绳安全开关可提供易于接近的紧急停止信号，是比多个紧急停止按钮更具成本效益的方案。CPS 系列的内部机构在拉绳被拉紧（拉动）或松弛（推压）时均能闭锁。

1CPS 适用于拉绳跨度不超过 76 m（250 ft）的场合，经济适用于较短的防护区或自动化系统的区域防护。2CPS 系列适用于最长 152 m（500 ft）以内的长距离拉绳，例如仓库中的长输送线。

在拉绳张力窗口中点有一条标线用于指示适当的拉绳张力，便于设置。当执行拉绳处于适当张力且复位旋钮置于 RUN（运行）位置时，直接开断型开关触点被保持闭合。若拉绳被拉动、松弛或断开，凸轮会正向打开常闭（NC）触点。触点的瞬跳动作使其在拉绳被拉动、松弛或断开时几乎同时改变状态并机械闭锁。常闭触点在正确张紧拉绳并手动旋转复位旋钮复位之前保持断开。

DESCRIPTION

MICRO SWITCH CPS Series Cable-Pull Safety Switches provide a readily accessible emergency stop signal, a cost-effective means compared to using multiple emergency stop push-buttons. The CPS Series Cable Pull Safety Switch’s internal mechanism latches on both slackened cable (push) and pulled cable.

The 1CPS is intended for use in applications where the cable span is 76 m [250 ft] or shorter. It is an economical solution for shorter runs or zone protection typical to automated systems. The 2CPS Series is intended for use in very long cable runs of 152 m [500 ft] or shorter, such as long conveyor lines found in warehouses.

A line in the midpoint of the cable tension window indicates proper cable tension, providing easy set-up. The direct opening switch contacts are held closed when the actuating cable is under proper tension and the reset knob is set to the RUN position. When the actuating cable is pulled, slackened, or broken, a cam positively opens the NC (Normally Closed) switch contacts. The snap-action operation causes the switch contacts to change state and mechanically latch almost simultaneously when the cable is pulled, slackened, or broken. The NC switch contacts remain open until the CPS is reset by properly tensioning the cable and manually rotating the reset knob.

HONEYWELL拉绳开关CPS系列其他常用型号：

HONEYWELL 1CPSC2A

HONEYWELL 1CPSA1

HONEYWELL 1CPSA1A

HONEYWELL 1CPSA1B

HONEYWELL 1CPSA5

HONEYWELL 1CPSC1

HONEYWELL 1CPSC1A

HONEYWELL 1CPSC5

HONEYWELL 1CPSA2

HONEYWELL 1CPSA2B

HONEYWELL 1CPSA6

HONEYWELL 1CPSA6A

HONEYWELL Pull-cord switch NEW + ORIGINAL+ ONE YEAR WARRANTY
