SENSITRON于1988年成立，是一家气体检测公司。其产品系列包括适用于各种应用的固定式气体检测系统、探测器和控制面板。

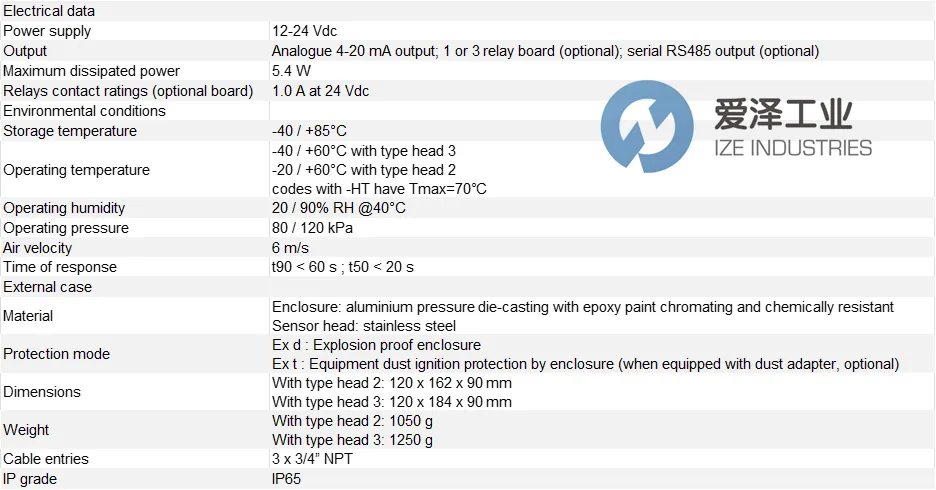

SENSITRON气体检测器SMART3G-C2 With catalytic sensor系列技术参数

SENSITRON气体检测器SMART3G-C2 With catalytic sensor系列介绍

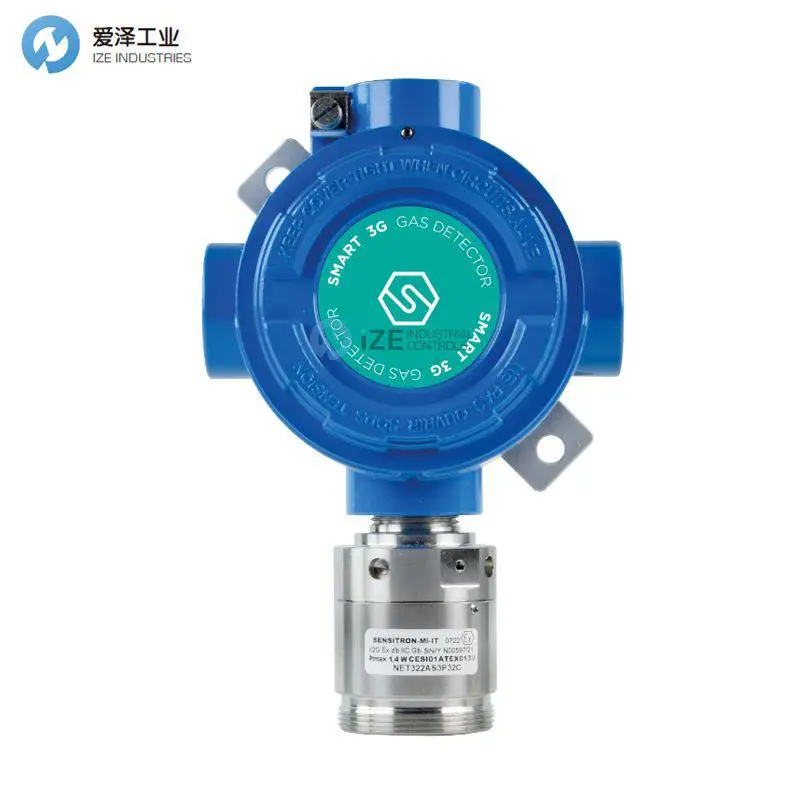

SMART3G-C2 气体检测仪专为满足工业需求而设计；其外壳防爆，可安装在ATEX 1区，配备防尘适配器后，还可安装在21区。传感元件位于不锈钢探头内。Sensitron开发了两种不同尺寸的探头：“2 型探头”直径为40毫米，“3 型探头”直径为48毫米。用于可燃气体检测的催化燃烧式传感器具有的输出线性度，最高可达100% LEL，且响应速度快。该气体检测仪采用12-24 Vdc电源供电，并配备标准的4-20mA三线制输出。SMART3G-C2还可选配RS485串行通信模块和1个或3个继电器板。铝制外壳尺寸为：配备2型接头时为120 x 162 x 90毫米，配备3型接头时为120 x 184 x 90毫米。外壳设有3个3/4 英寸NPT螺纹电缆入口。

SMART3G-C2 gas detector is designed to meet industrial requirements; the enclosure is explosion proof and can be installed in ATEX Zone 1 and, when equipped with dust adapter, in Zone 21. The sensing element is placed in the stainless steel head. Sensitron has developed two type heads with different dimensions: the model “Type head 2” has a 40 mm diameter, the “Type head 3”version has a 48 mm diameter. The pellistor sensors employed for the flammable gas detection show an excellent output linearity up to 100% LEL and fast time of response. The gas detector has a 12-24 Vdc power supply and a standard 4-20mA 3-wires output. Optionally, the SMART3G-C2 can be equipped with serial RS485 communication and a 1 or 3 relays board. The aluminium enclosure has dimensions 120 x 162 x 90 mm when equipped with type head 2, 120 x 184 x 90mm when the head type 3 is used. The enclosure has 3 cable entries 3/4” NPT threaded.

SENSITRON气体检测器S2097H2介绍

氢气检测器，12-24V直流

Hydrogen gas detector, 12-24 Vdc

SENSITRON气体检测器SMART3G-C2系列其他常用型号：

SENSITRON S2097H2

SENSITRON S2097ME

SENSITRON S2097GP

SENSITRON S2097PR

SENSITRON S2097BU

SENSITRON S2097VB

SENSITRON S2097AA

SENSITRON S2097AT

SENSITRON S2097AB

SENSITRON S2097BT

SENSITRON S2097CE

SENSITRON S2097CP

SENSITRON S2097EN

SENSITRON S2097AE

SENSITRON S2097ET

SENSITRON S2097EE

SENSITRON S2097EL

SENSITRON S2097EP

SENSITRON S2097ES

SENSITRON Gas detector NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于SENSITRON气体检测器S2097H2的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for SENSITRON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

SENSITRON气体检测器SMART3G-C2系列S2097H2技术参数及介绍
