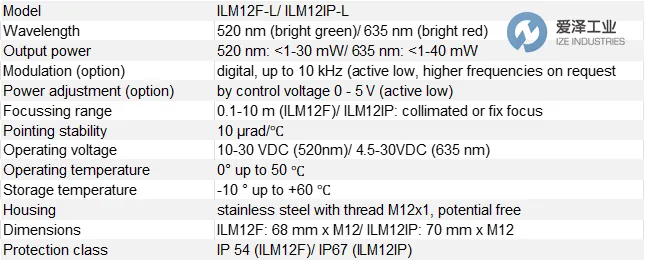

LASER COMPONENTS激光模块ILM12F系列技术参数

LASER COMPONENTS激光模块ILM12F系列介绍

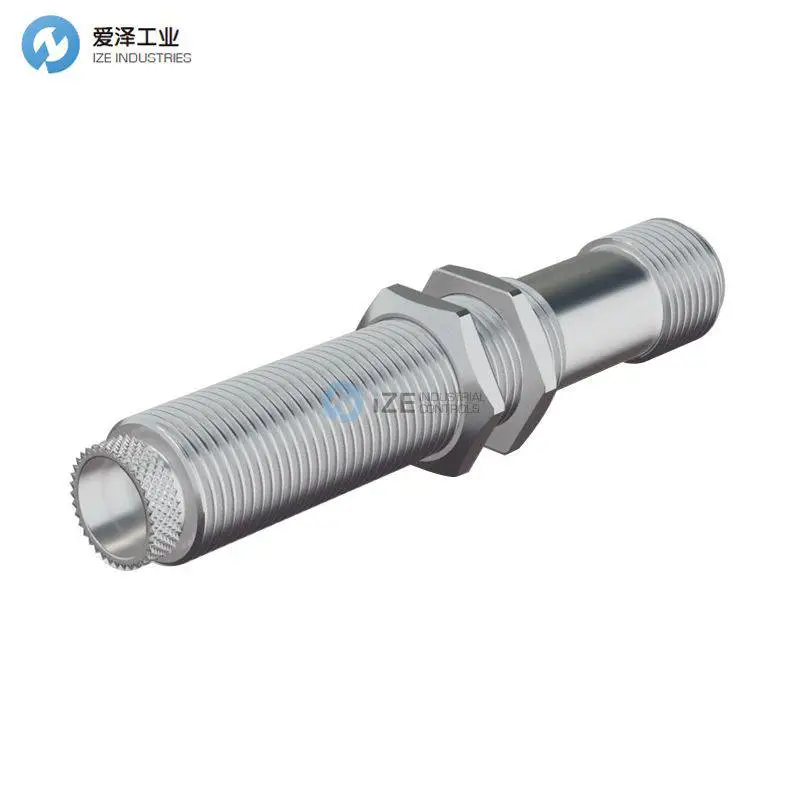

ILM12 激光模块专为工业定位和对准应用而开发。这些激光器采用 M1 2x 1 外螺纹接口，并配备不锈钢工业级外壳，易于集成。所有 ILM12F激光器均配备可调焦距，可在所需工作距离处生成清晰纤细的线条。

所有 ILM12 IP 激光器均采用 IP67 防水外壳，非常适合户外应用。它们提供准直光束或客户定制的固定聚焦光束。

ILM12F 激光模块可投射 520 nm（绿色）或 635 nm（亮红色）波长的光点、线或十字线。

特性

点状激光器

线状激光器

十字线激光器

520 nm（绿色）或 635 nm（亮红色）

4.5/10 - 30 VDC 电源电压

M12 工业外壳和连接器

提供 1 类和 2 类激光激光器（无需佩戴激光防护眼镜）

The ILM12 laser modules were specifically developed for industrial

positioning and alignment applications. Thanks to their M1 2x 1 external thread, these lasers, which come in industrial housings made of stainless steel, are easy to integrate. All ILM12F lasers come with an adjustable focus to generate a crisp and thin line at the desired working distance.

All ILM12 IP lasers have an IP67 waterproof housing. These laser modules are well prepared for outdoor applications. They have a collimated or customer specific fix focused beam.

The ILM12F laser modules project either dots, lIines, or cross hairs at 520 nm (green) or 635nm (bright red).

Characteristics

Dot laser

Line laser

Cross-hair laser

520 nm (green) or 635 nm (bright red)

4.5/10 - 30 VDC supply voltage

M12 industrial housing and connector

lasers with laser class 1, 2 available (no laser safety eyewear necessary)

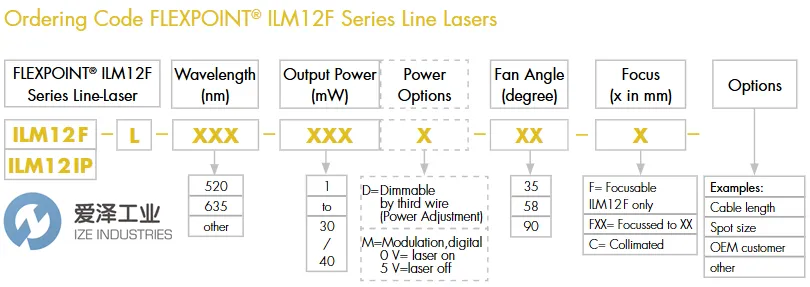

LASER COMPONENTS激光模块ILM12F系列选型

LASER COMPONENTS激光模块ILM12F系列其他常用型号：

LASER COMPONENTS ILM12F-L-635⁻⁷-58-F

LASER COMPONENTS ILM12F-L-635⁻⁷-58

LASER COMPONENTS ILM12F-L-635-10-90

LASER COMPONENTS ILM12F-L-635-10-58

LASER COMPONENTS ILM12F-L-520⁻⁷-58

LASER COMPONENTS ILM12F-DOE-520⁻⁷-B

LASER COMPONENTS ILM12F-DOE-520⁻⁷-A

LASER COMPONENTS ILM12F-D-635-1-CF

LASER COMPONENTS ILM12F-DOE-520-5-F

LASER COMPONENTS ILM12F-D-520-1-CF

LASER COMPONENTS ILM12F-C-635⁻⁷-247

LASER COMPONENTS ILM12F-C-635-5-218

LASER COMPONENTS ILM12F-C-520⁻⁷-289

LASER COMPONENTS ILM12F-L-635⁻⁷-35F

LASER COMPONENTS laser modules NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于LASER COMPONENTS激光模块ILM12F-L-635⁻⁷-58-F的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for LASER COMPONENTS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

LASER COMPONENTS激光模块ILM12F系列ILM12F-L-635⁻⁷-58-F技术参数及介绍
