CINCINNATI成立于1956年，其使命是为客户提供优质的产品及可靠的售后服务。

CINCINNATI专业生产铸铝和钢，铝和不锈钢风机，功率范围为1/4至125马力，也可根据客户需求定制型号。CINCINNATI严格的质量把控与其可靠耐用的产品在行业内有着很好的声誉。

CINCINNATI FAN风机SPB系列介绍

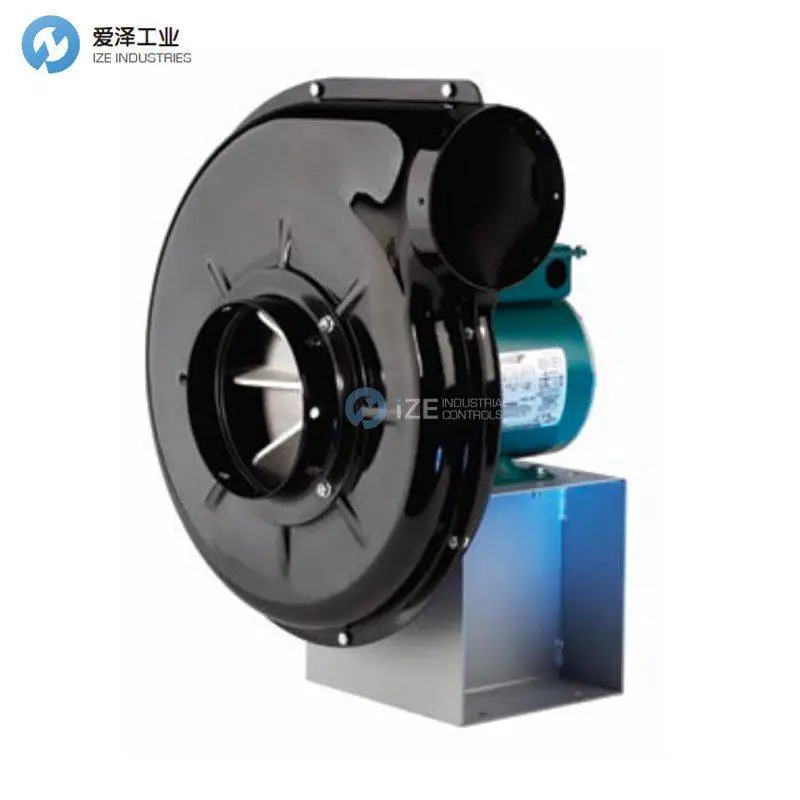

型号 SPB：钢制模压高压风机（Pressure Blower）

Cincinnati Fan 生产三种型号的 SPB 钢制模压高压风机，全部标配坚固的模压钢壳体。

所有型号均可选配多种叶轮和进风口尺寸，提供广泛的性能范围，并可提供直联和皮带传动两种结构形式。

性能范围：

风量：最高 4,075 CFM

全压：最高 18" SPWG

标准结构：可输送最高 150°F（66°C）的气流

可选高温结构：最高 400°F（204°C）

更高风量或压力时：

更高温度：参见 PBS 型

更高压力或更大风量（CFM）：参见 HP-I、HP-II 或 RBE 型

产品特征：

型号 SPB 采用 14 号钢板模压壳体，比同尺寸范围内多数焊接钢壳体更为坚固

圆形进出口，可通过插接或法兰轻松与标准管道或风管连接，也便于连接软管

壳体内外均为黑色烘烤搪瓷粉末喷涂，形成坚固、耐候涂层

所有型号均可通过不同叶轮及进风口尺寸组合，形成 48 条紧凑、经济的直联性能曲线

8 型布置（Arrangement 8）标配轴/联轴器防护罩

9 型布置（Arrangement 9）标配皮带防护罩

优势：

更坚固耐用：14 号钢壳体配合烘烤粉末涂层，比多数同尺寸风机更重型，适用于含磨蚀性物料的工况

防火花：标配铝合金叶轮并增加铝制摩擦环时，SPB 型风机符合 AMCA B 型防火花要求（若需要 AMCA A 型防火花，请参见 PB 型高压风机）；相较竞品更具成本优势

易于接管：圆形进出口便于通过插接或法兰与管道/风管连接，也便于软管连接，无需特殊的方圆转换件

外观美观：模压钢壳体外形坚固又流畅，适合重视外观和结构一体化的工业设备/OEM 设计应用

Model SPB: Die-Formed Steel Pressure Blower

Cincinnati Fan manufactures three models of the Model SPB Die-Formed Pressure Blower. All models are standard with rugged die ｆormed steel housings.

Multiple wheel and inlet sizes are available on all models to provide extensive perｆormance ratings. Available in both direct and belt driven arrangements.

PERFORMANCE RANGE:

• Capacities up to 4,075 CFM and 18″ SPWG

• Standard construction, air stream temperatures up to 150˚F (66˚C)

• Optional high-temperature construction to 400˚F (204˚C)

FOR HIGHER CAPACITIES:

Temperate: See Model PBS

Pressures or CFM: See Model HP-I, Model HP-II or Model RBE

Features

The Model SPB, 14-gauge, die ｆormed steel housing is heavier duty than most fabricated steel blower housings in this size range.

Round inlets and discharges easily connect to standard duct or pipe sizes with slip connections or flanges. Also allows for easy flexible hose connections.

Blower housings are black, baked enamel, powder coated inside and out for a tough, weather resistant finish.

All models available with different wheel and inlet sizes to produce forty-eight lines of compact, cost efficient, direct drive perｆormance ratings.

Arrangement 8 units come standard with shaft/coupling guards.

Arrangement 9 units come standard with belt guards.

Benefits

More Rugged: The 14-gauge steel housing with the baked on powder coating is more heavy-duty than most blowers in this size range. Will take more wear in abrasive material handling applications.

Spark Resistant: Model SPB Blowers with standard aluminum wheels and the addition of an aluminum rubbing ring are AMCA Type B spark resistant. (If you need AMCA Type A spark resistance, see Model PB Pressure Blowers.) Less expensive than the competition.

Easy Pipe or Duct Connections: Model SPB Blowers have round inlets and discharges, so a connection to duct or pipe is easily made with slip connections or flanges. Also allows for easy flexible hose connections. Does not require special square-to-round transitions.

Aesthetically Attractive: The appearance of the stamped steel SPB housing is a plus for industrial equipment designers that place value on a rugged yet smooth design. Very appealing to OEM designers.

CINCINNATI FAN风机SPB系列其他常用型号：

CINCINNATI FAN SPB-15X

CINCINNATI FAN SPB-9

CINCINNATI FAN SPB-12

CINCINNATI FAN FANS NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于CINCINNATI FAN风机SPB-15X的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for CINCINNATI FAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

CINCINNATI FAN风机SPB系列SPB-15X介绍
