MTL是EATON旗下的一个系列，产品主要有：模块、显示器、电源、接线集线器等。

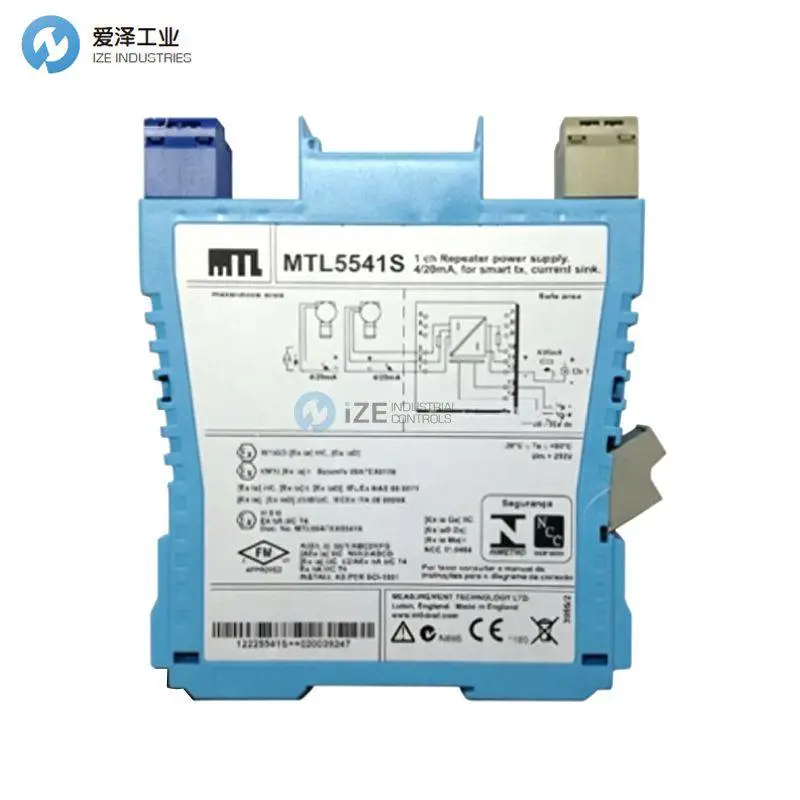

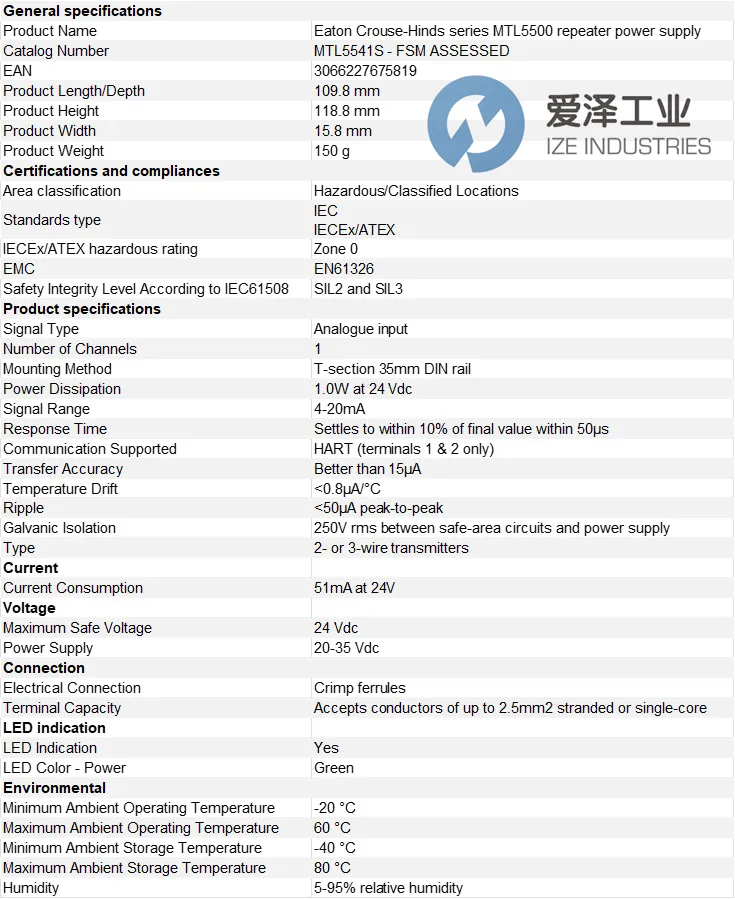

MTL中继器电源MTL5541S技术参数

MTL中继器电源MTL5500系列介绍

应用与功能

模拟输入模块MTLx541（单通道）和 MTLx544（双通道）是本质安全型隔离器，可与位于过程工厂危险区域的过程测量变送器连接。它们按照IEC 61508 标准设计和评估，适用于最高 SIL3 安全等级的安全仪表系统，无需硬件冗余。

每个模块均提供完全浮动的直流电源，用于为传统的两线制或三线制 4-20mA 过程变送器供电，同时将现场回路中的电流重复分配到另一个浮动电路，以驱动安全区域负载。MTLx544D将单个现场回路中的电流重复分配到两个隔离的安全区域负载。对于使用HART协议的“智能”两线制变送器，这些模块允许在 4-20mA 信号电流上叠加双向通信。模块上无需设置任何配置开关或操作员控制。

Application and function

The analogue input modules, MTLx541 (single channel) and MTLx544 (dual channel) are intrinsic safety isolators that interface with process measurement transmitters located in a hazardous area of a process plant. They are also designed and assessed according to IEC 61508 for use in safety instrumented systems up to SIL3, without hardware redundancy.

Each module provides a fully-floating dc supply for energising conventional 2-wire or 3-wire 4-20mA process transmitters while repeating the current flowing in the field loop into another floating circuit to drive the safe area load. The MTLx544D repeats the current flowing in a single field loop into two isolated safe area loads. For‘smart’ 2-wire transmitters using the HART protocol the units allow bi-directional communications superimposed on the 4-20mA signal current. There are no configuration switches or operator controls to be set on the modules.

MTL中继器电源其他常用型号：
MTL MTL4541

MTL MTL4541B

MTL MTL4541S

MTL MTL4541Y

MTL MTL4544

MTL MTL4544B

MTL MTL4544D

MTL MTL4544S

MTL MTL5541

MTL MTL5541S

MTL MTL5544

MTL MTL5544D

MTL MTL5544S

MTL repeater power supply NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业集产品开发、设计、制造、销售、于一体，代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于MTL中继器电源MTL5541S的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for MTL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

MTL中继器电源MTL5500系列MTL5541S技术参数及介绍
