SIGNALINE是英国制造的一系列线性热和水检测系统，深受各工业领域的信赖。

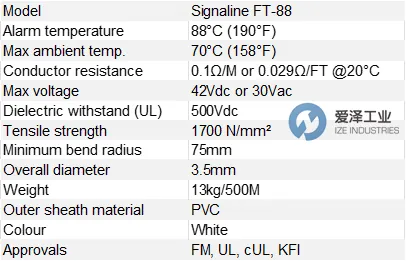

SIGNALINE热探测器CSSIGFT002 FT-88技术参数

SIGNALINE热探测器FT系列介绍

Signaline FT线型热探测器是一款固定温度的线型热探测器，已获得 UL、cUL 和 FM Global 认证。当电缆温度达到设定的报警温度时，Signaline FT线型热探测器会发出警报。

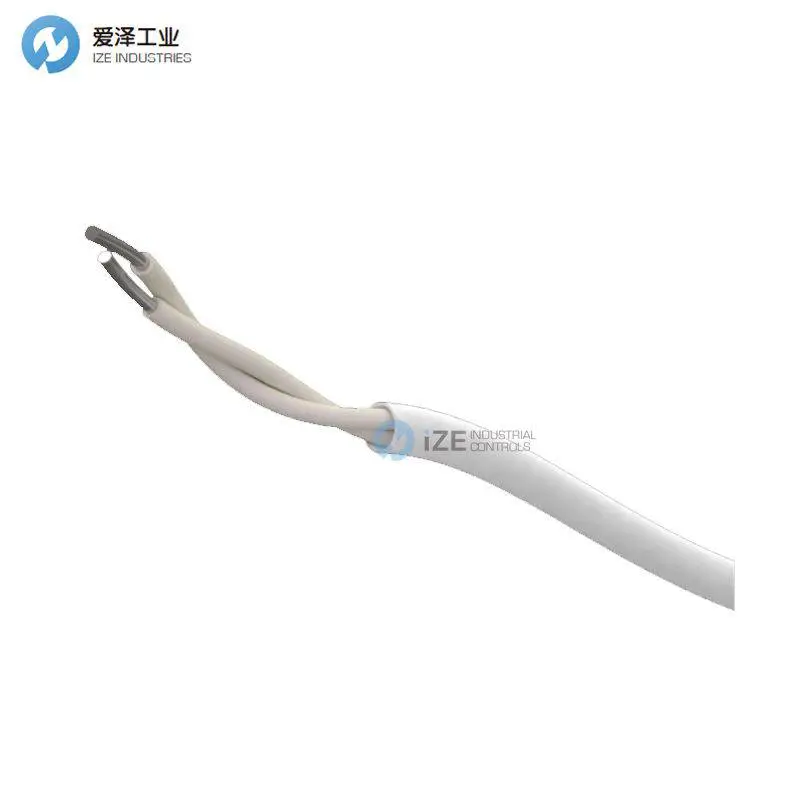

Signaline FT 线性热探测系统的工作原理是利用一根热敏电缆来检测温度变化。当电缆达到特定温度时，两根内部线芯之间的热敏聚合物会熔化，使两根线芯接触。这种接触会触发警报。

Signaline FT 提供 68°C、88°C 和 105°C 三种报警温度。

Signaline FT系列标准线性热探测电缆采用PVC外层，适用于一般用途。对于严苛环境，建议使用Signaline FT-R系列，该系列采用耐化学腐蚀的尼龙外层，可在严苛的工业环境中提供更强的耐用性。

Signaline FT 线性热探测技术可通过Signaline LocatorPlus和Signaline FT-EOL提供精确的报警定位和简便的报警测试。

Signaline FT Linear Heat Detection is a fixed temperature line-type heat detector range that is approved by UL, cUL and FM Global. Signaline FT Linear Heat Detection triggers an alarm when the cable reaches a set alarm temperature.

Signaline FT Linear Heat Detection works by using a heat-sensitive cable that detects changes in temperature. When the cable reaches a certain temperature, the heat sensitive polymer between two internal cores melts allowing the two cores to touch. This contact triggers an alarm.

Signaline FT is available in 68°C, 88°C and 105°C alarm temperatures.

Standard Signaline FT Linear Heat Detection cables come with a PVC coating for general use. For harsh environments we would recommend using Signaline FT-R range which has a chemical-resistant nylon coating for enhanced durability in demanding industrial environments.

Signaline FT Linear Heat Detection offers exact alarm location and easy alarm testing via the Signaline LocatorPlus and Signaline FT-EOL.

SIGNALINE热探测器FT系列其他常用型号：

SIGNALINE CSSIGFT001 FT-68

SIGNALINE CSSIGFT002 FT-88

SIGNALINE CSSIGFT005 FT-68-R

SIGNALINE CSSIGFT009 FT-68-S

SIGNALINE CSSIGFT006 FT-88-R

SIGNALINE CSSIGFT012 FT-88-S

SIGNALINE CSSIGFT003 FT-105

SIGNALINE CSSIGFT007 FT-105-R

SIGNALINE CSSIGFT013 FT-105-S

SIGNALINE CSSIGFT004 FT-185-R

SIGNALINE CSSIGFT008 FT-185-S

SIGNALINE CSSIGFT011 FT-230-S

SIGNALINE CSSIGFT010 FT-230-X

SIGNALINE Heat detector NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于SIGNALINE热探测器CSSIGFT002 FT-88的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for SIGNALINE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

SIGNALINE热探测器FT系列CSSIGFT002 FT-88技术参数及介绍
