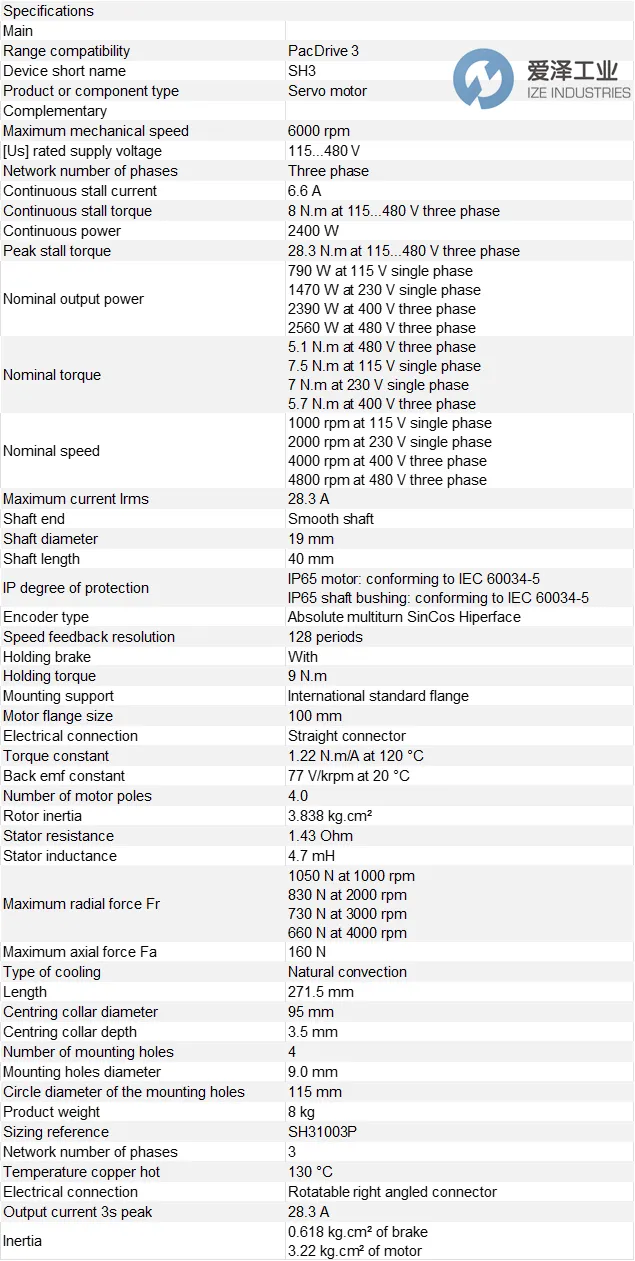

SCHNEIDER伺服电机SH31003P02F2100技术参数

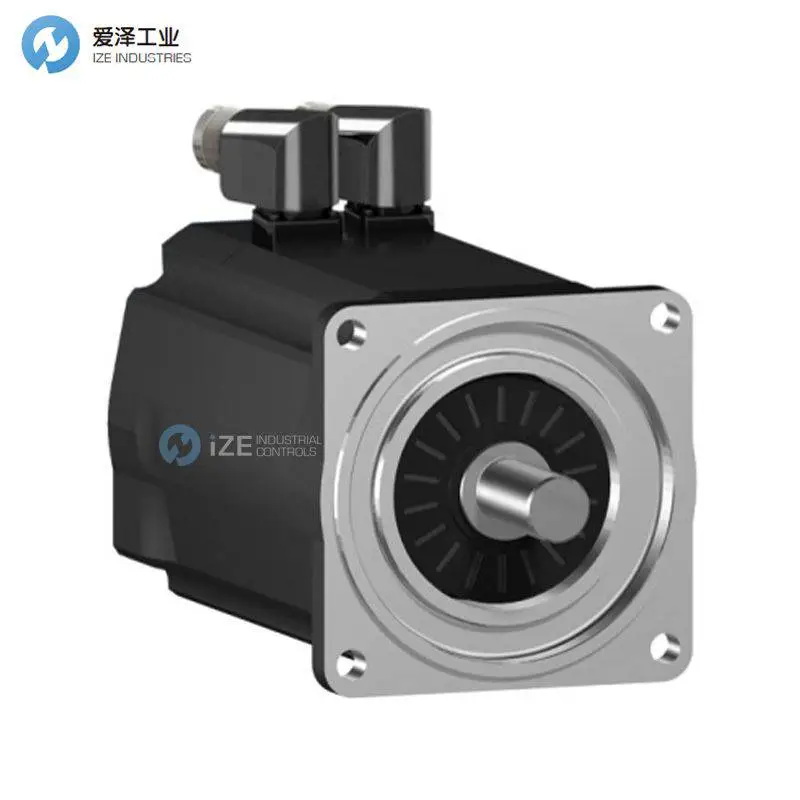

SCHNEIDER伺服电机SH31003P02F2100介绍

本产品属于Lexium 52 & Motors 系列，是专为PacDrive 3 设计的伺服电机产品。这款4 极伺服电机机械转速为6000RPM，轴端光滑并带有保压制动器。它配备了式多圈 SinCos Hiperface® 编码器，速度反馈分辨率为128个周期。该伺服电机的额定供电电压为115V 至480V，持续堵转电流为6.6A，持续功率为2400W。轴尺寸为直径19mm，长度 40mm。它配有可旋转的直角连接器，用于电气连接。该产品防护等级为 IP65。产品长度为271.5mm，定心环尺寸为深度 3.5mm，直径 95mm，安装孔径为115mm。重量为 8kg。该系列产品与 PacDrive 3 兼容，适用于运动控制设备。它支持100mm 国际标准法兰安装，并采用自然对流冷却系统。Lexium 52 可为 Lexium 62 多轴伺服系统提供理想的平衡，使 PacDrive 系统成为灵活的运动控制解决方案。Lexium 独立式伺服驱动器功率范围从 0.4kW 到 7kW，适用于基于 PacDrive 的自动化解决方案。

This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 4-pole servo motor features maximum mechanical speed of 6000RPM and smooth shaft end with holding brake. It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution. It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 6.6A and a continuous power of 2400W. The shaft dimensions are 19mm (diameter) x 40mm (length). It is furnished with rotatable right angled connectors for electrical connection. It is an IP65 rated product. The length of this product is 271.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 8kg. This range is compatible with PacDrive 3 for motion centric machines. It supports 100mm international standard flange mount with a natural convection cooling system. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.

SCHNEIDER伺服电机其他常用型号：

SCHNEIDER SH31003P02F2100

SCHNEIDER SH30401P06A2000

SCHNEIDER SH30401P06A2100

SCHNEIDER SH30401P06F2000

SCHNEIDER SH30401P06F2100

SCHNEIDER SH30401P07A2000

SCHNEIDER SH30401P07F2000

SCHNEIDER SH30401P07F2100

SCHNEIDER SH30401P16A2000

SCHNEIDER SH30401P17A2000

SCHNEIDER SH30401P17A2100

SCHNEIDER SH30401P17F2000

SCHNEIDER SH30401P17F2100

SCHNEIDER SH30402P06A2000

SCHNEIDER SH30402P06F2100

SCHNEIDER SH30402P07A2000

SCHNEIDER SH30402P07A2100
