REXROTH公司总部注册于德国，公司于1795年成立，REXROTH于为各类机械和系统设备提供安全、、高效以及高性价比的传动与控制技术。公司融合全球的应用经验，研发创新的产品，为行走机械、机械应用与工程、工厂自动化及可再生能源每一个细分市场的客户量身定制系统解决方案及服务。

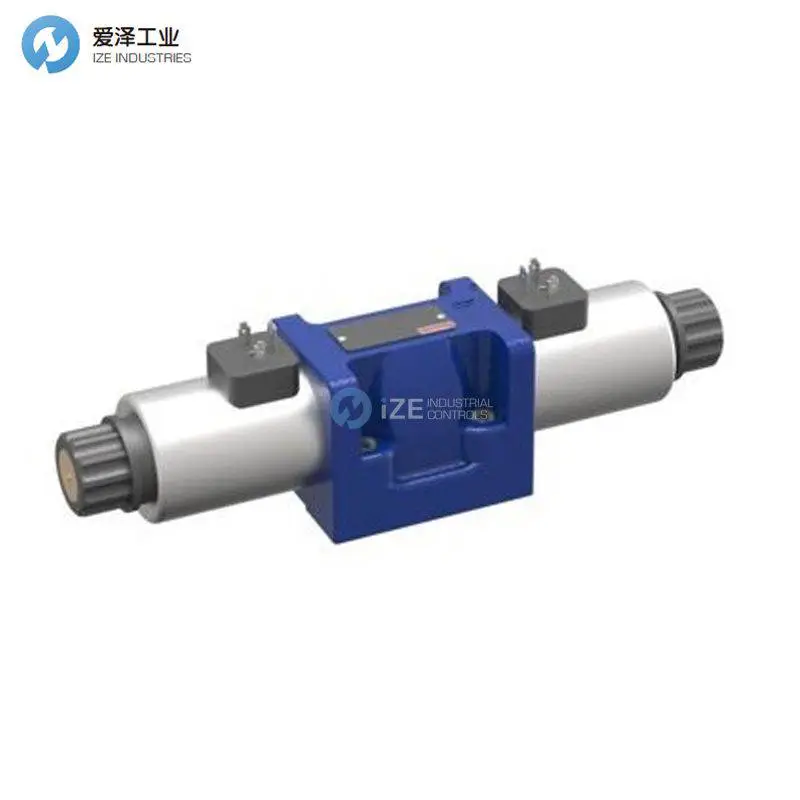

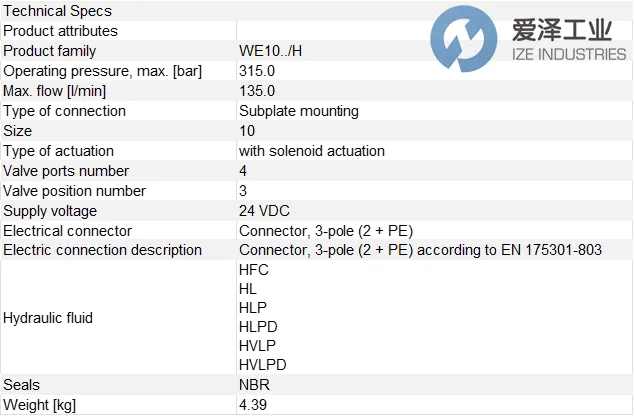

REXROTH阀4WE10J5X/HG24N9K4/M R901401552技术参数

REXROTH阀WE.../H系列介绍

方向控制滑阀，直接操作，电磁驱动

特性

▶ 4/3、4/2 或 3/2 方向设计

▶ 标准电磁阀

▶ 端口布局符合 ISO 4401-05-04-0-05 和 NFPA T3.5.1 R2-2002 D05 标准

▶ 湿式直流电磁阀，线圈可拆卸

▶ 电磁阀线圈可旋转 90°

▶ 无需打开密封腔即可更换线圈

▶ 独立电气连接

▶ 手动控制

▶ 可选配阀芯位置监控功能

Directional spool valves, direct operated, with solenoid actuation

Features

▶ 4/3, 4/2 or 3/2 directional design

▶ Standard solenoid

▶ Porting pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05

▶ Wet-pin DC solenoids with detachable coil

▶ Solenoid coil can be rotated by 90°

▶ The coil can be changed without having to open the pressure-tight chamber

▶ Electrical connection as individual connection

▶ Manual override

▶ Spool position monitoring, optional

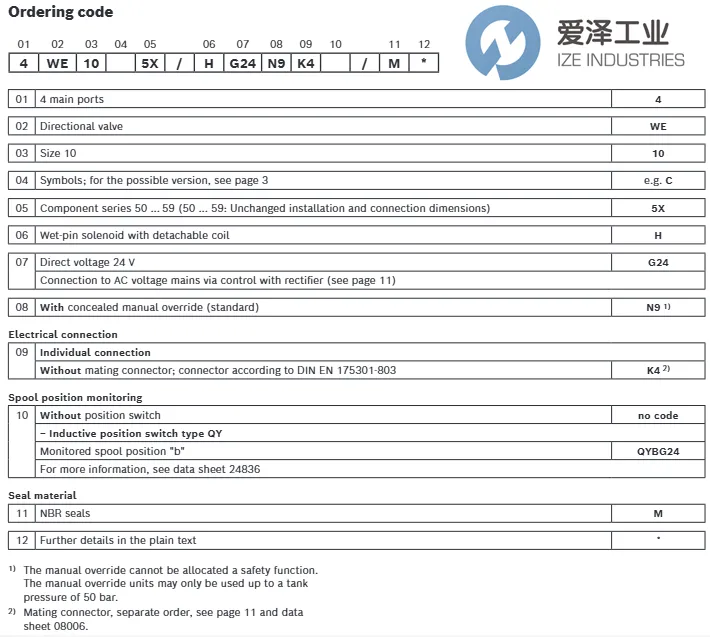

REXROTH阀WE.../H系列选型

REXROTH阀WE.../H系列其他常用型号：

REXROTH 4WE10J5X/HG24N9K4/M R901401552

REXROTH 4WE10E5X/HG24N9K4/M R901390857

REXROTH 4WE10G5X/HG24N9K4/M R901427832

REXROTH 4WE10C5X/HG24N9K4/M R901391203

REXROTH 4WE10D5X/HG24N9K4/M R901391200

REXROTH 4WE10L5X/HG24N9K4/M R901391161

REXROTH 4WE10U5X/HG24N9K4/M R901391194

REXROTH 4WE10Y5X/HG24N9K4/M R901391202

REXROTH 4WE10E171-5X/HG24N9K4/M R901514356

REXROTH 4WE10EA5X/HG24N9K4/M R901391198

REXROTH 4WE10EB5X/HG24N9K4/M R901391199

REXROTH 4WE10H5X/HG24N9K4/M R901427828

REXROTH 4WE10J2B5X/HG24N9K4/M R901431135

REXROTH 4WE10J2B5X/HG24N9K4QY0G24/M R901470998

REXROTH 4WE10M5X/HG24N9K4/M R901401553

REXROTH 4WE10UA5X/HG24N9K4/M R901488889

REXROTH 4WE10Y11-5X/HG24N9K4/M R901391204

REXROTH 4WE10D5X/HG24N9K4QYBG24/M R901432612

REXROTH VALVE + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供制造技术和设备。代理经营世界的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，于成为工业产品和解决方案的优质渠道。

如果有任何关于REXROTH阀4WE10J5X/HG24N9K4/M R901401552的疑问，请随时与我们沟通（021-31006702）。我们将尽解决您的问题。

If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

REXROTH阀WE.../H系列4WE10J5X/HG24N9K4/M R901401552技术参数及选型
