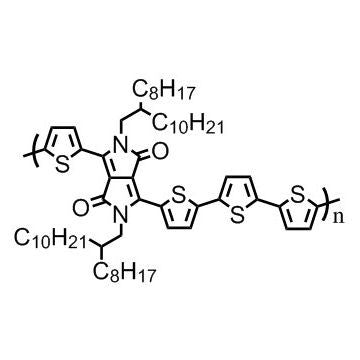

PDPP4T (CAS number 1267540-03-3) is a promising class of semiconducting polymers for organic solar cells. This is due to its small optical band gap and high charge-carrier mobility. It is also known as Poly[2,5-bis(2-octyldodecyl)pyrrolo[3,4-c]pyrrole-1,4(2H,5H)-dione -3,6-diyl)-alt-(2,2’;5’,2’’;5’’,2’’’-quaterthiophen-5,5’’’-diyl)] or DPP4T.

With one DPP unit as electron-withdrawing and four five-membered thiophene as electron-rich units in its backbone, PDPP4T is a low-band gap polymer semiconductor with a planar structure. The alkyl chain attached to the DPP unit serves as a high-solubilising group and has a tendency to crystallize to ensure a better packing film. A hole mobility greater than 1 cm2 V-1 s-1 [8] has been reported in top-contact bottom-gate devices.

Device performance PCE of 7.59% with a VOC of 0.61 V, JSC of 17.95 mA/cm 2 , and FF of 69.6%, is reported with PC71BM as electron acceptor [1]. This is using a solvent swelling assisted sequential deposition (SSA-SD) method to produce bulk heterojunction PSCs based on a crystalline diketopyrrolopyrrole (DPP) polymer and PC71BM. By adding polymers with high mobility, like DPP-DTT, device performance with higher PCE should be expected [5].

Luminosyn™ PDPP4T

Luminosyn™ PDPP4T is now available.

High Purity and
High Molecular Weight

Purified by Soxhlet extraction with methanol, hexane, and chlorobenzene under argon atmosphere

Batch-Specific

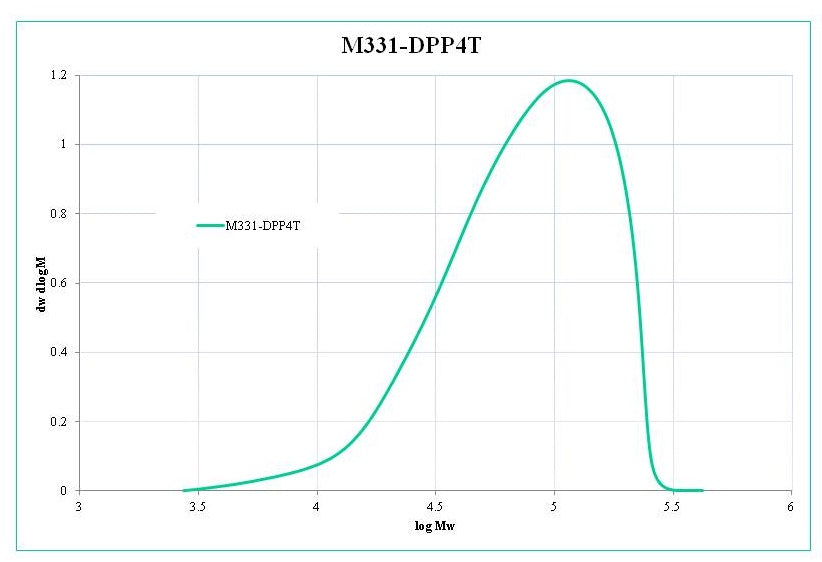

GPC Data

Have confidence in what you are ordering with batch-specific GPC data for your thesis or publications

Large Quantity
Orders

Implement consistency in your experiments with polymers from the same batch

General Information

Characterization

Soxhlet extraction was carried out using methanol, acetone, hexane, and then chlorobenzene as washing solvents under argon. Chlorobenzene fraction was concentrated, precipitated with methanol, and dried under vacuum at 40 oC for 48 hours. GPC was carried out using 1,2,4-trichlorobenzene as eluent at 140 oC by using polystyrene as standards.

Synthetic Route

DPP4T was synthesized by using 3,6-bis(5-bromothiophen-2-yl)-2,5-bis(2-octyldodecyl)pyrrolo[3,4-c]pyrrole-1,4(2H,5H)-dione and 5,5'-bis(trimethylstannyl)-2,2'-bithiophene as starting materials via Stille Coupling polymerisation in chlorobenzene. Targeted polymer was purified using Soxhlet extraction with methanol, acetone, hexane and finally chlorobenzene as washing and extracting solvents.
